Setting up a publicly accessible Garage bucket	/setting-up-public-garage-bucket/	2025-08-17	s3 aws self-hosting

What is Garage?

Garage is software that enables you to create an S3-like object storage solution on servers you maintain yourself.

Although your server exists outside of the AWS infrastructure, Garage incorporates methods and operations from the S3 API and SDK (e.g. GetBucket, ListBuckets etc. ) and is compatible with the awscli tool.

My goals

I set Garage up on my VPS as a general resource that would allow me to leverage object storage as necessary. My specific motivation was to be able to create a publicly accessible bucket of images that I could source from a URL within my home-made knowledge-management software ("Eolas").

Configuring unauthenticated public access to a bucket is not as straightforward as S3, but it is possible.

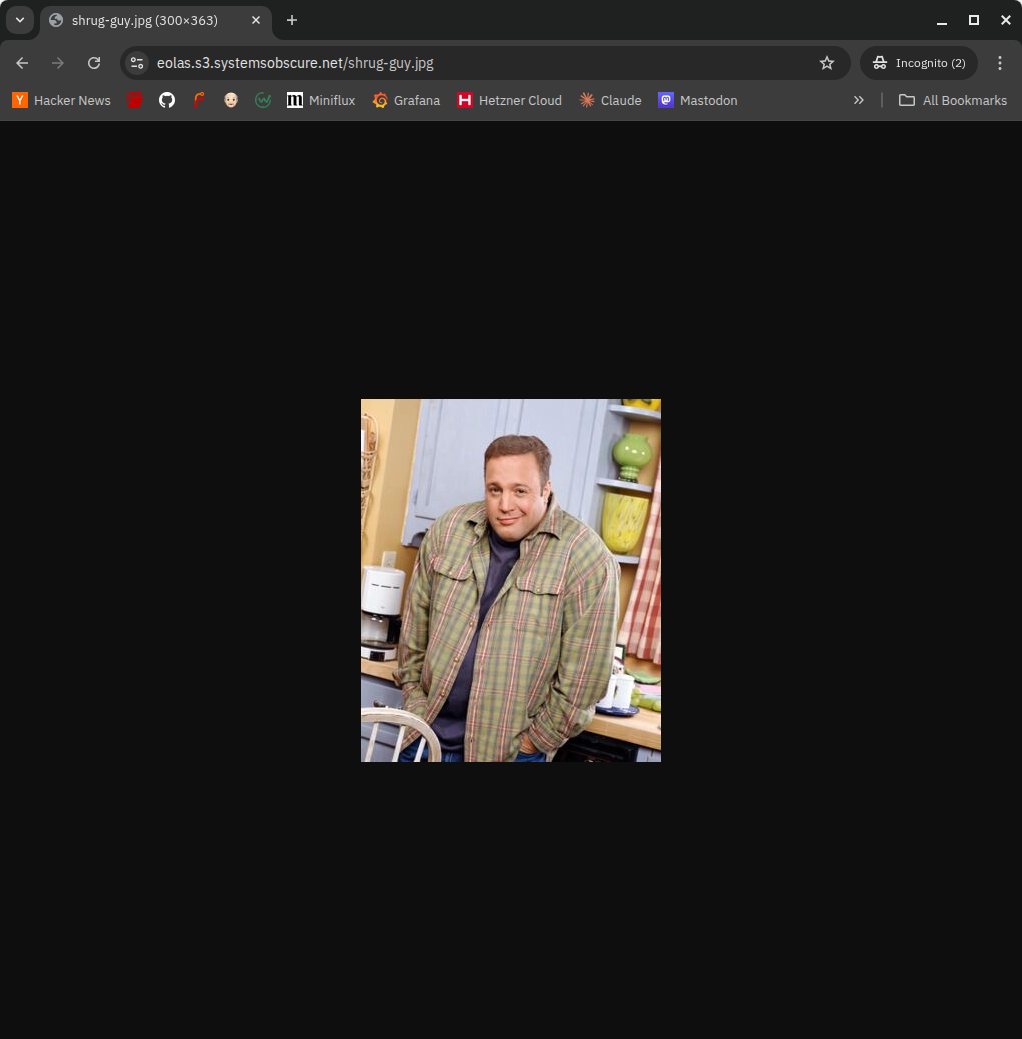

I created a Garage instance accessible at s3.systemsobcure.net that I will use for authenticated access to my buckets via the S3 API or awscli. I also created a publicly-accessible bucket as a Garage "website" at eolas.s3.systemsobcure.net. Resources in this bucket are freely available without authentication, for example:

Nomenclature

An instance of Garage, running on a single server, is called a node. Data can be replicated on different nodes accross multiple servers.

A layout is a designation of the Garage storage topology, similar to a partition table on a disk. A layout can span multiple nodes in scenarios where data is being replicated. This is known as a layout cluster.

Once a valid layout has been created on a node, you can then create buckets that may be replicated accross nodes.

I will be creating a single node layout comprising one bucket where the contents are publicly accessible.

Installation

I installed Garage and added the binary to the $PATH on my VPS running Debian.

wget https://garagehq.deuxfleurs.fr/_releases/v2.0.0/x86_64-unknown-linux-musl/garage
chmod +x garage
sudo mv garage /usr/local/bin

Configuration

Garage is configured via a config file at /etc/garage.toml:

metadata_dir = "/data/sqlite/garage-metadata"
data_dir = "/mnt/storagebox_alpha/garage"
db_engine = "sqlite"

replication_factor = 1

rpc_bind_addr = "[::]:3901"
rpc_public_addr = "127.0.0.1:3901"
rpc_secret = "redacted"

[s3_api]
s3_region = "garage"
api_bind_addr = "0.0.0.0:3900"
root_domain = ".s3.garage.localhost"

[s3_web]
bind_addr = "0.0.0.0:3902"
root_domain = ".s3.systemsobscure.net"
index = "index.html"

The key points to note:

• I set the data_dir to a network-attached storage device rather than the harddrive of the VPS.

• I set the replication_factor to 1 since I will be running a single node instance of Garage

• s3_api is the address I will use for authenticated operations. s3_web is designed to be used as a web GUI for the Garage software however I will be using this address for my public buckets which will each be exposed under their own bucket.s3 subdomain on my server.

In order to be able to access the addresses over the internet, I needed to create configuration files for both the 3900 and 3902 ports in nginx and map the local processes to my DNS and SSL certificates.

For the web address, the key instructions are as follows:

server {
	listen 443 ssl;
	server_name *.s3.systemsobscure.net;
    location / {
		proxy_pass http://172.18.0.1:3902;
    }
}

I have also configured my SSL certificate to include subdomains with the pattern *.s3.systemsobscure.net.

You'll notice I'm using a very specific IP address (172.18.0.1) for the local address rather than localhost. This is because my nginx instance runs as a Docker container and 171.18.0.1 is the default address for the Docker bridging network, allowing the containerised instance of nginx to access actual or "bare metal" ports.

The config for the API address simply maps s3.systemsobscure.net to the local 3900 port.

server {
	listen 443 ssl;
	server_name s3.systemsobscure.net;
    location / {
		proxy_pass http://172.18.0.1:3900/;
    }
}

With the configuration created and the routing set up I can start the server with garage server and then check the status:

$ garage status

==== HEALTHY NODES ====
ID                Hostname          Address         Tags  Zone  Capacity          DataAvail  Version
1234        self-host-server  127.0.0.1:3901              NO ROLE ASSIGNED             v2.0.0

To avoid having to manually start the server every time the server restarts, I created a systemd service to manage this automatically.

Creating a layout and bucket

In order to start creating buckets I needed first to create a layout for the node:

garage layout assign -z dc1 -c 500G 1234

This creates a layout on my single node 500GB in size (dc1 denotes a single zone).

To apply:

garage layout apply --version 1

To create my "eolas" bucket:

garage bucket create eolas

And then, to confirm:

$ garage bucket list

ID                Created     Global aliases  Local aliases
<hash>  2025-08-10  eolas

$ garage bucket info eolas

==== BUCKET INFORMATION ====
Bucket:            <hash>
Created:           2025-08-10 14:17:22.025 +00:00

Size:              38.4 MiB (40.3 MB)
Objects:           291

The bucket exists but in order to access it and any future buckets I need to generate an API key that I can use to authenticate with Garage remotely.

garage key create self-host-key

This gives me an access key and secret key that I can add as a profile to the awscli config on my client machine at .aws/credentials:

[default]
aws_access_key_id = <redacted>
aws_secret_access_key = <redacted>

[garage]
aws_access_key_id = <redacted>
aws_secret_access_key = <redacted>

Note that the default creds are those that I use for interacting with actual AWS services, distinguished from Garage which uses the same software but runs on my server.

I then need to give the key access to the "eolas" bucket:

garage bucket allow \
  --read \
  --write \
  --owner \
  --eolas \
  --key self-host-key

With this in place I can start interacting with the bucket on my server:

aws --profile garage --endpoint-url https://s3.systemsobscure.net s3 cp test.txt s3://eolas/
aws --profile garage --endpoint-url https://s3.systemsobscure.net s3 ls s3://eolas/
2025-08-17 15:28:46  test.txt

The file I just created can be accessed on the public internet at https://eolas.s3.systemsobscure.net/test.txt.
